iWaterHub™ is a standardized modular hardware platform for high-capacity industrial water treatment. Modules are prefabricated, tested and factory-validated, then transported to client sites for rapid assembly and commissioning.
Standardized modular design and short design cycle.
Supply-chain control, rigorous QA and factory validation.
Short construction period with low civil works requirement.
Lean operations with remote monitoring and AI-assisted control.
Reduced testing, faster start-up and stable output.
Our current capacity configurations are shown below, offering flexible deployment options to match different industrial water-demand profiles, production scales and site needs.
| Series | Model Code | Output |
|---|---|---|
| S1 | AQUR2.0-RO-J-X200-1/3 | 5,000 m³/d |
| S2 | AQUR2.0-RO-J-X300-1/3 | 7,500 m³/d |
| S3 | AQUR2.0-RO-J-X400-1/3 | 10,000 m³/d |
| S4 | AQUR2.0-RO-J-X600-1/3 | 15,000 m³/d |
| S5 | AQUR2.0-RO-J-X800-1/3 | 20,000 m³/d |

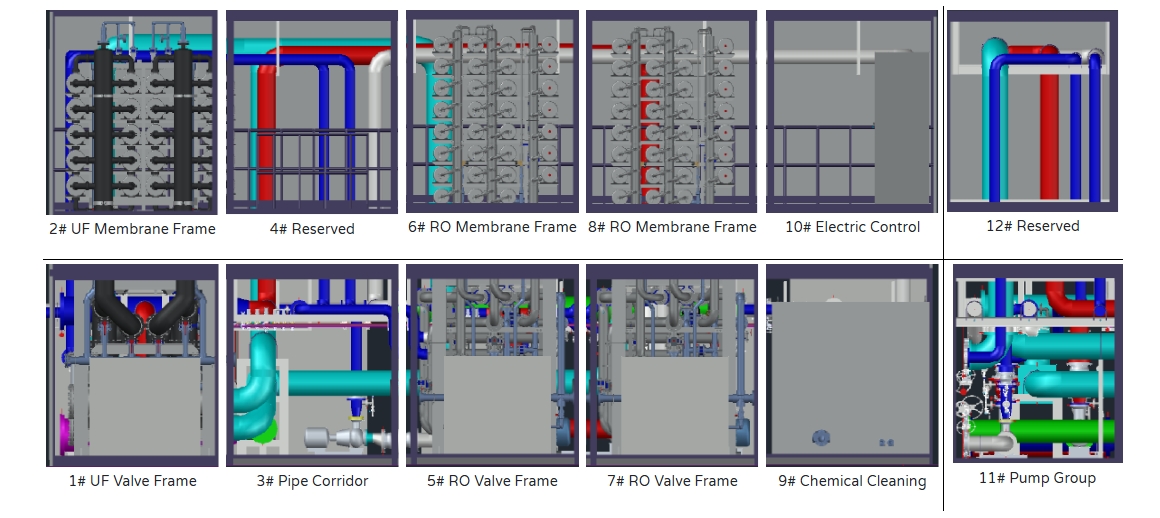

Our standard 5,000 m³/day UFRO iWaterHub™ system is composed of 12 highly integrated modules. All modules are prefabricated in the factory before on-site assembly and commissioning. The system is designed for seismic resilience up to magnitude 7.0.
